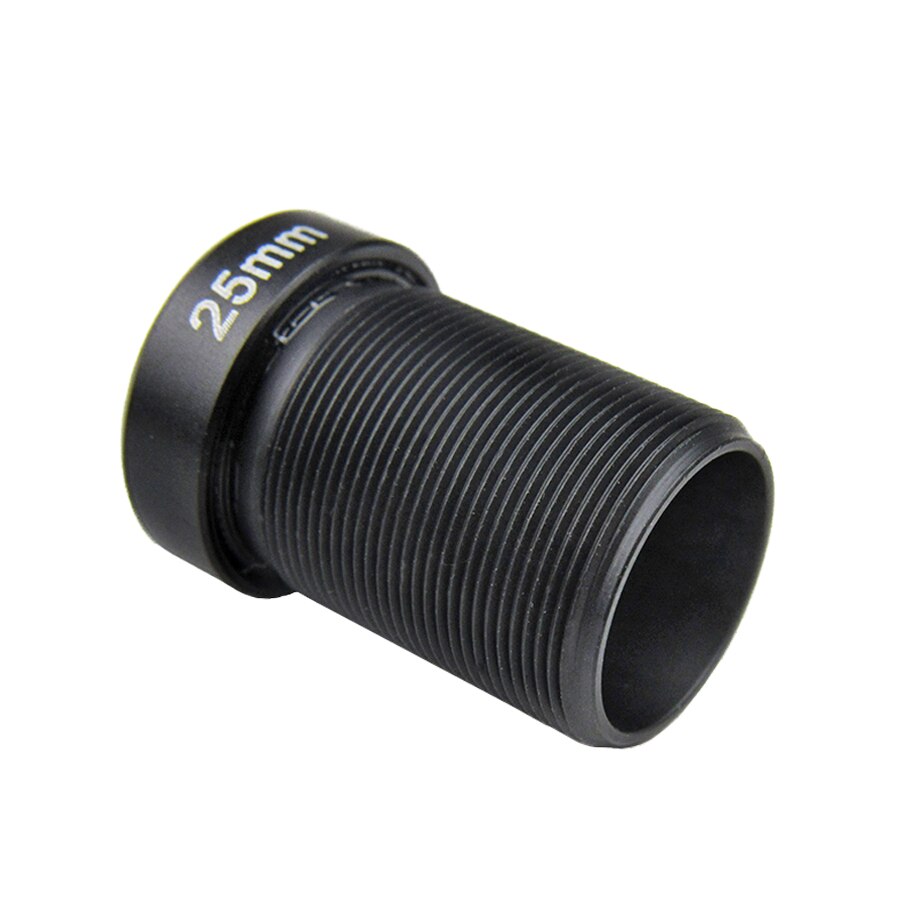

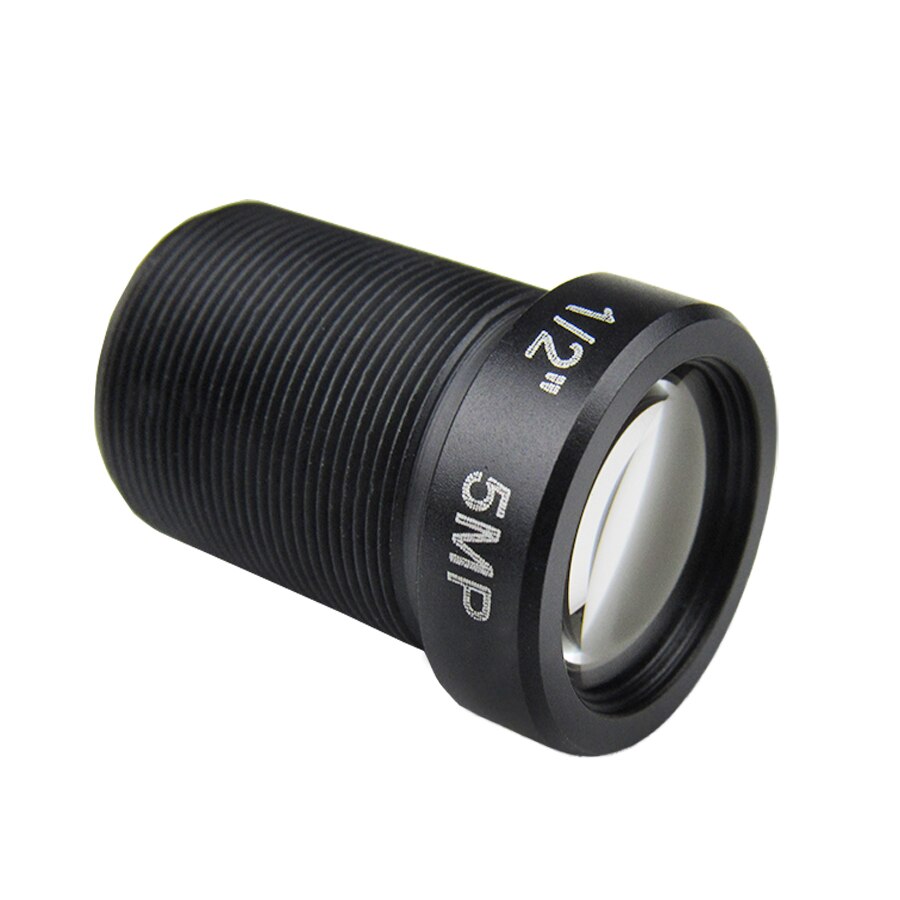

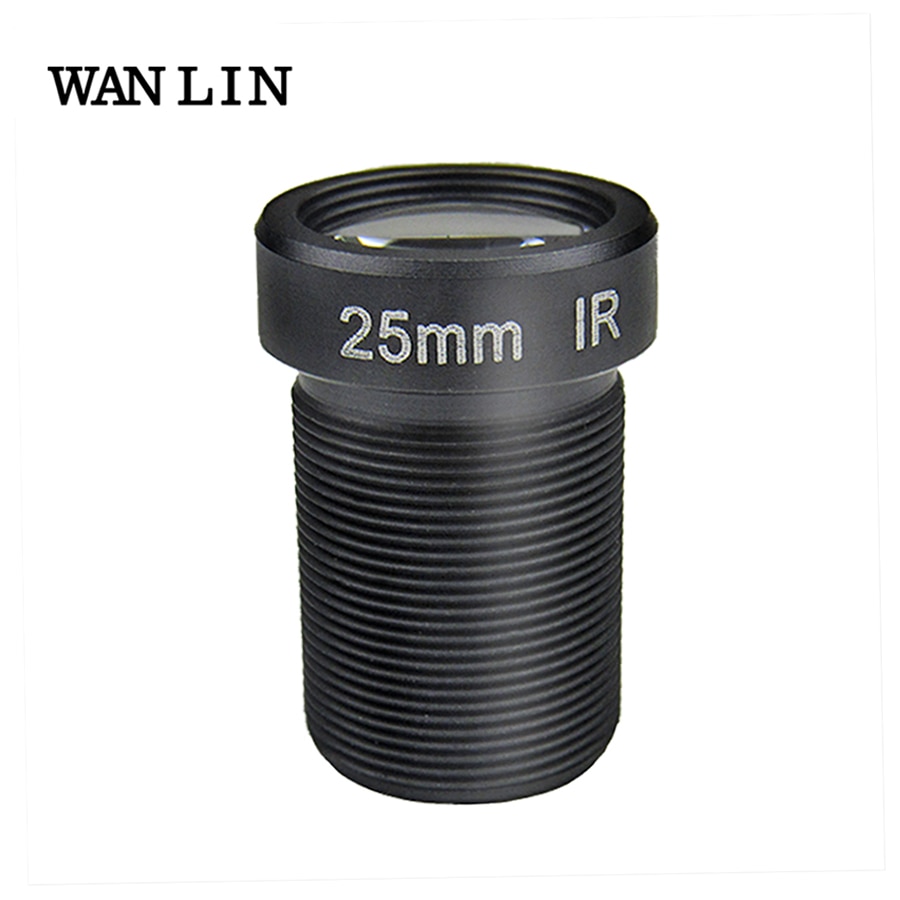

HD 5Megapixel multi-player coating cctv camera lens, made of metal and glass, with IR correction for clear night vision, 1/2″ Image sensor help to reach a larger vieiwng angle and long viewing distance at the same time, apply for 2MP, 3MP and 5MP HD CCTV Cameras, perfect vision within 20-50 viewing distance. High resolution and precision.
Specifications:
– Resolution: 5.0Megapixel
– Image Format: 1/2″
– Focal Length: 25mm
– Aperture: F2.4
– Mount: M12
– Field Angle(1/2″): D18.8°×H15.04°×V11.28°
– M.O.D: 0.3m
– Flang BFL: 13.5mm
– BFL: 6.9 ~14.4mm
– MBF: 6.1mm
– Back Focal Length: 11.5mm
– Iris: Fixed

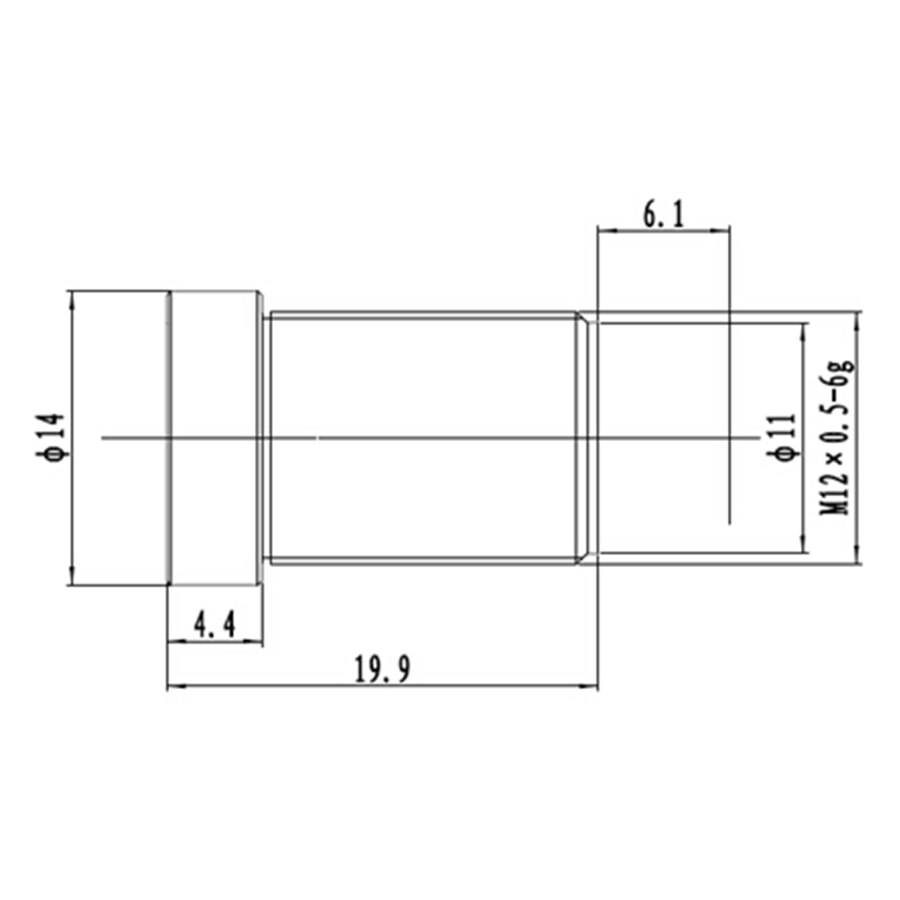

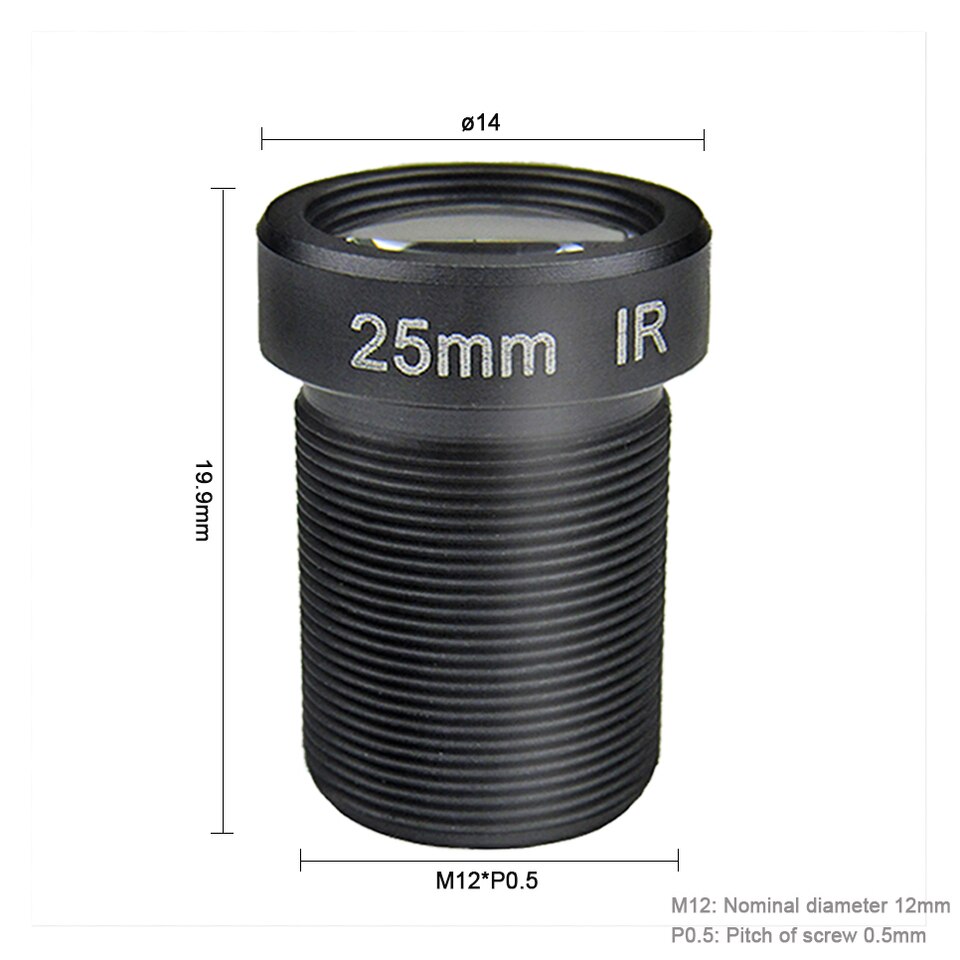

– Dimension: Φ14×19.9mm
– Weight: 5g
– Operating temperature: -20C + 60C
– Size tolerance(mm): 0 – 10 ± 0.05
– Angle tolerance: ±2°
– Application: For HD CCTV cameras, IP cameras, AHD cameras
Important Tips:
1) This lens is without IR filter for CCTV Camera, if you buy this lens for an action camera, you need the lens with IR filter, pls purchase it on this link: 5MP 25mm Lens with IR Filter
2) CCTV camera should be equipped with IR cut, if you do not have IR cut, you can purchase IR cut from this link: M12 IR cut
HD 5.0Megapixel25mm CCTVLensM12 Lensfor HD CCTV SurveillanceCameras HD IP Cameras:
